Position sensors, as a device capable of sensing and quantifying changes in the position of objects or themselves in space, have become an indispensable part of modern technology. Whether it is the precise control that ensures the safe driving of the car, or the key technology that enables the precise operation of the robot, position sensors play a central role. From simple mechanical devices to complex electronic systems, position sensors adapt to a wide range of applications in different industries with their diverse forms and working principles. Here, Chipqry details the different types of position sensors, how they work, and their practical applications in various fields such as industrial automation. Chipqry also discusses the limitations and challenges you may encounter when using these sensors to help you fully understand the technical characteristics and application scenarios of position sensors.

1. What is a position sensor

A position sensor is a device used to detect the position of an object or itself in space. It is able to sense and measure changes in the position of the target and convert this information into an electrical signal or other readable form of output for further processing or use. Position sensors are widely used in a variety of fields, including but not limited to the automotive industry, robotics, aerospace, consumer electronics, and more.

2. Common types and principles of position sensors

Understanding the different types of position sensors helps you choose the right one for your application.

Resistive position sensor

The resistive position sensor is used to measure the position by using the characteristic that the resistance changes with the position. When the object moves, the sliding contacts attached to the object slide along the resistance track, changing the total resistance value in the circuit. By measuring the change in the resistance value, the position of the object can be calculated. It is widely used for measuring linear or rotational displacement, such as detecting the position of the accelerator pedal.

Advantages: Simple structure, low cost. Large output signal, easy to process. Easy to use, suitable for a variety of applications.

Disadvantages: easy to wear, limited life. It is greatly affected by the ambient temperature. The resolution and accuracy are relatively low. Not suitable for high-speed movement.

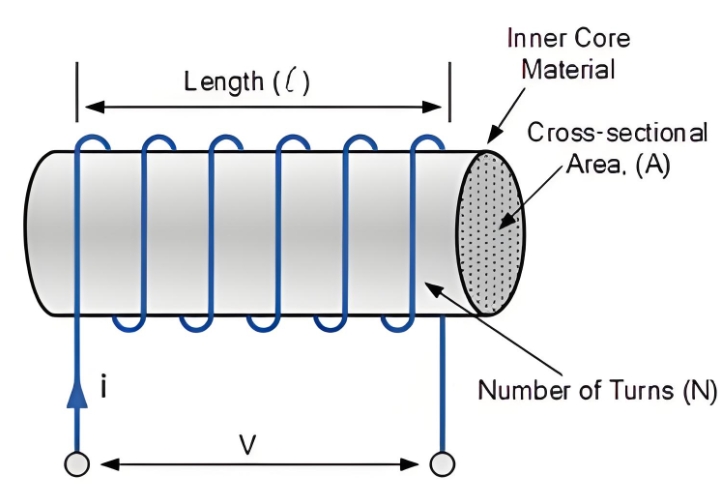

Inductive position sensor

Inductive position sensors are based on the principle of electromagnetic induction. When the metal target is near the sensor, it changes the magnetic field around the sensor, which in turn affects the current or voltage through the coil. By detecting this change, the location of the target can be determined. It is often used for non-contact displacement measurement, such as position monitoring in industrial automation.

Advantages: non-contact measurement, long life. Strong anti-pollution ability, suitable for harsh environment. Fast response speed, suitable for high-speed motion occasions.

Disadvantages: Higher cost. An external excitation source (such as a power supply) is required. The measurement range is limited.

Capacitive position sensor

Capacitive position sensors rely on the property that the capacitance value varies with distance. A capacitor consists of two parallel plates, and when the position of one of the plates changes, the distance or area between the two plates will change, resulting in a change in the capacitance value. Suitable for applications requiring high sensitivity and non-contact measurement, such as touch screen technology.

Advantages: non-contact measurement, long life. High resolution, suitable for high precision measurement. Fast response time.

Disadvantages: Easily affected by ambient temperature and humidity. Sensitive to dust and pollution. Installation is demanding and requires precise alignment.

Hall effect sensor

Hall effect sensors take advantage of the Hall effect, which is that when a current flows through a conductor placed in a magnetic field, a voltage difference (Hall voltage) is created in the direction perpendicular to the current and magnetic field. By measuring this voltage difference, changes in the strength of the magnetic field can be learned, and the position of the object can be inferred. Widely used in brushless DC motor position feedback, proximity detection and so on.

Advantages: non-contact measurement, long life. Simple structure, small size. Fast response speed, suitable for high-speed motion occasions. The cost is relatively low.

Disadvantages: by magnetic field interference, may produce misjudgment. Magnetic field source required for specific applications. Limited accuracy and resolution.

Magnetoresistive position sensor

Magnetoresistive position sensors are based on the magnetoresistive effect, in which the resistance of a material changes with the strength of the magnetic field it is in. When the magnetic field strength changes, the resistance of the material will also change accordingly, and the position of the object can be determined by detecting the change in resistance. Commonly used in rotary encoders to detect the angular position of the axis of rotation.

Advantages: non-contact measurement, long life. High precision, high resolution. Strong anti-interference ability, suitable for harsh environment. Suitable for long distance measurements.

Disadvantages: Higher cost. Sensitive to magnetic fields and may be disturbed by other magnetic fields. Installation and calibration are complex.

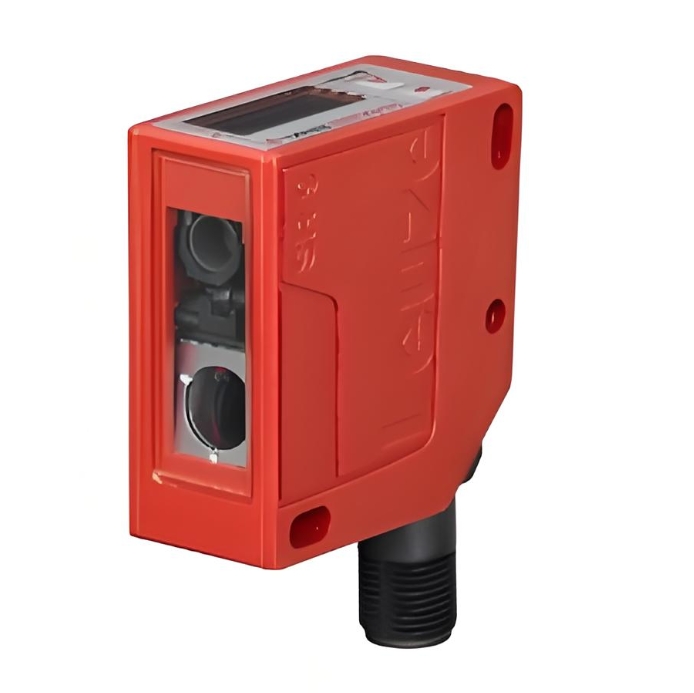

Optical position sensor

Optical position sensors use the propagation characteristics of light to detect position. When the light emitted by the light source is blocked or reflected, the light intensity received by the photosensitive element will change, according to which the position of the object can be judged. Widely used in precision measurement, security protection and other fields, such as printer paper position detection.

Advantages: non-contact measurement, long life. High precision, high resolution. Fast response speed, suitable for high-speed motion occasions. Strong resistance to electromagnetic interference.

Disadvantages: Susceptible to dust and pollution. High requirements for light source and light path. The cost is higher.

Ultrasonic position sensor

The principle of ultrasonic position sensors is based on transmitting ultrasonic pulses and then receiving the echoes reflected back from the target. By measuring the time difference between transmission and reception, the distance to the target can be calculated. Suitable for long distance, non-contact distance measurement, such as reversing radar.

Advantages: non-contact measurement, long life. Wide measuring range, suitable for long distance measurement. Strong resistance to electromagnetic interference. The cost is relatively low.

Disadvantages: affected by temperature and humidity. The response speed is relatively slow, not suitable for high-speed motion occasions. The detection of objects absorbing and reflecting sound waves is poor.

3. The role of position sensors in industrial automation

In industrial robots, position sensors are used to precisely measure the angular position of each joint, ensuring that the robot is able to perform tasks according to preset trajectories and actions.

On CNC machine tools, position sensors are used to detect the relative position of the tool and the workpiece to ensure machining accuracy and efficiency.

On automated production lines, position sensors are used to detect the position and condition of materials to ensure they can be handled and assembled correctly.

Position sensors can help detect the position of the boxes to ensure they are properly placed and palletized.

During the manufacturing process, position sensors can be used to detect the size and shape of products to ensure that product quality meets standards.

During assembly, position sensors can be used to calibrate the position of individual components to ensure assembly accuracy.

In industrial environments, position sensors can be used to detect the position of equipment and people to prevent collisions.

Position sensors can be used to detect the limit position of the equipment and prevent the equipment from going out of the safe range.

In the chemical and energy industries, position sensors are used to detect the opening and closing position of valves to ensure the proper operation of processes.

In liquid storage and delivery systems, position sensors can be used to detect the level height and prevent overflow or idling.

In servo control systems, position sensors are used to provide precise position feedback of the motor rotor, ensuring that the motor can move precisely according to instructions.

In logistics and manufacturing systems, position sensors can be used to detect the position of items on conveyor belts to ensure that items are transported and handled correctly.

Position sensors can be used to monitor the motion state of the equipment, detect anomalies in time, and prevent equipment failures.

By monitoring the change of the position of the equipment, the wear of the equipment can be predicted and maintenance can be carried out in advance.

Concrete example

In automotive production lines, position sensors are used to detect the position of the body and ensure the precise execution of welding and painting processes.

In the semiconductor manufacturing process, position sensors are used to detect the position of wafers to ensure that wafers can be correctly transmitted to the various processes.

On the food processing line, position sensors are used to detect the position and condition of food to ensure that food can be properly packaged and sealed.

4. What are the limitations of the use of position sensors

While position sensors play an important role in industrial automation and other fields, there are some limitations and challenges. Understanding these limitations helps to make better choices and optimizations during design and application.

Here are some common restrictions on the use of position sensors:

①Environmental factor

Temperature: Extreme temperatures may affect the performance of the sensor. High or low temperatures may cause changes in the physical properties of the sensor material, which can affect the measurement accuracy.

Humidity: High humidity may cause condensation inside the sensor, affecting its normal operation.

Dust and contamination: Dust, oil, and other contaminants can clog sensitive parts of the sensor, resulting in measurement errors or complete failure.

Vibration and shock: Strong vibration and shock can damage the sensor or cause its readings to be unstable.

② Physical limitations

Measurement range: Each sensor has its own specific measurement range, outside of which may result in measurement errors or unmeasurement.

Resolution and accuracy: Different sensors have different resolutions and accuracy, and improper selection may not meet the needs of a specific application.

Response time: Some applications require a fast response, while some sensors have a longer response time and may not meet the requirements of real-time control.

③ Electrical interference

Electromagnetic interference (EMI) : Electromagnetic interference can affect the signal transmission of the sensor, resulting in measurement errors or data loss.

Power supply fluctuations: Fluctuations in the power supply voltage may affect the performance of the sensor, especially in the case of unstable power supply.

④ Installation and maintenance

The installation of some sensors can be complex and requires specialized techniques and tools.

Regular maintenance and calibration are necessary to ensure the long-term stability of the sensor, but this also increases maintenance costs and workload.

⑤ Cost

High-performance position sensors tend to be more expensive, increasing the initial investment cost of the system.

Maintenance and calibration costs also need to be considered.

⑥ Compatibility and integration

The interface type and communication protocol of the sensor need to be compatible with existing systems, otherwise additional adapters or converters may be required. Integrating sensors into existing systems may require software and hardware modifications, increasing development time and costs.

⑦ Physical size

Some applications require very small sensors, but existing technologies may not be able to meet this requirement or will result in significant cost increases.

⑧ Service life

The service life of the sensor is limited, and performance degradation or failure may occur after prolonged use.

⑨ Nonlinear error

Some sensors may have nonlinear errors and require complex correction algorithms to improve the measurement accuracy.

⑩ Multi-axis measurement

In applications that require multi-axis measurement, the synchronization and coordination of multiple sensors can become very complex, increasing the complexity and cost of the system.

solution

Despite the above limitations, many problems can be overcome with proper design and choice:

• Select the right sensor type: Select the most suitable sensor according to the specific application needs.

• Environmental protection: Use a shield or seal to protect the sensor from environmental factors.

• Regular maintenance: Regular calibration and inspection to ensure the long-term stability of the sensor.

• Anti-interference design: Using shielded cables and filters to reduce the impact of electromagnetic interference.

• Redundant design: Use redundant sensors in critical applications to improve system reliability and fault tolerance.

By taking these limitations and solutions into account, the advantages of position sensors can be better utilized to improve the overall performance and reliability of the system.

5. Conclusion

Position sensors can accurately measure the position of objects through a variety of working principles, and are widely used in automotive, industrial automation and consumer electronics. Despite the challenges of environmental factors, physical limitations and electrical interference, these problems can be effectively overcome by reasonable selection of sensor types, enhanced protection and regular maintenance. It is believed that with the development of technology, position sensors will become more intelligent and efficient, bringing new opportunities to various industries and promoting the intelligent production and lifestyle.
