Current Sensor Introduction

2024-10-15 15:43:18 930

In this article, we want to introduce you to current sensors.

Contents:

1. Common current sensors and their principles
2. Main application areas of current sensors
3. How to choose the right current sensor
4. Install the current sensor correctly
5. Maintenance and troubleshooting
5.1 Common fault types and causes of current sensors
5.2 How to test the current sensor
5.3 Suggestions for Routine Maintenance of the current sensor
6. Conclusion

什么是电流传感器

Figure 1: Current sensor

A current sensor is a device used to detect and measure the amount of current in a circuit. They can be non-contact, such as Hall effect sensors or fluxgate sensors, or they can be contact, such as shunt resistors. By monitoring current levels, they not only help to improve the safety of electricity usage - for example, to prevent the occurrence of potentially dangerous conditions such as overloads and short circuits - but are also crucial for optimizing energy efficiency, fault diagnosis, and supporting data collection and analysis.

1. Common current sensors and their principles

Current sensor is used to measure the size of the current in the circuit device, according to its working mode can be divided into contact and non-contact two categories. The contact current sensor measures the current by directly connecting to the circuit, while the non-contact type uses principles such as electromagnetic induction to complete the measurement without touching the circuit under test.

Below, INFINITECH details several common types of current sensors and how they work.

Hall effect current sensor

The Hall effect is the phenomenon that when a conductive material (usually a semiconductor) is placed in a magnetic field and a current passes through it, there is a voltage difference in the direction perpendicular to the current and the magnetic field. Hall effect current sensor is designed based on this phenomenon. Hall effect sensor is composed of Hall element, magnetic core and related electronic circuit. When the measured wire passes through or near the Hall element, the current in the wire creates a magnetic field, which acts on the Hall element, resulting in a Hall voltage. The voltage signal is amplified and converted into a readable current value. Suitable for AC and DC current measurement; Fast response speed, small size; Low sensitivity to ambient temperature.

霍尔效应电流传感器的工作原理

Figure 2: How the Hall effect current sensor works

Fluxgate current sensor

Fluxgate sensor is a kind of high precision equipment for current measurement by using the saturation characteristic of soft magnetic material and the action of alternating magnetic field. The fluxgate sensor consists of a soft magnetic core, an excitation coil, and a detection coil. The alternating magnetic field generated by the excitation coil makes the soft magnetic core enter the saturation state periodically, resulting in the detection coil output a signal proportional to the change of the external magnetic field strength. When a current passes through the measured conductor, a magnetic field is generated around the magnetic core, which affects the signal on the detection coil. Has very high sensitivity and good linearity; Suitable for low frequency to medium frequency range of AC current measurement; The cost is relatively high.

磁通门电流传感器的工作原理

Figure 3: Working principle of fluxgate current sensor

Russell coil current sensor

The Rothschild coil is a hollow toroidal coil that works based on Faraday's law of electromagnetic induction and is used to measure alternating current. The Roche coil surrounds the outer side of the measured conductor but is not in physical contact with it. When there is an alternating current in the conductor, a changing magnetic field is generated, which causes an induced electromotive force in the coil. The induced electromotive force is proportional to the rate of change of current in the conductor. In order to get the actual current value, it is necessary to integrate the induced voltage. Suitable for AC current measurement in a wide frequency range; Light and easy to use, easy to install; Almost unaffected by temperature changes; No response for DC components.

罗氏线圈电流传感器结构原理图

Figure 4: Roche coil current sensor structure schematic diagram

2. Main application areas of current sensors

Power systems and energy management

Grid monitoring is used to monitor the current in transmission lines to help power companies perform load balancing, fault detection, and optimize grid operation.

Smart grid As an important part of smart grid, current sensors can collect data in real time, support dynamic price adjustment, demand response and other advanced functions.

Renewable energy: In solar power stations or wind farms, it is used to monitor inverter output, battery charging status, etc., to ensure energy conversion efficiency.

Industrial automation

Motor control: Precise speed control and protection mechanisms are achieved by measuring the current driving the motor, improving the reliability and efficiency of the production process.

Factory automation: integrated into various control systems, used to monitor the working status of equipment, timely detection of abnormal conditions and take appropriate measures.

Process control: In chemical, metallurgical and other industries, the current monitoring of heating elements or other high energy consumption devices to maintain the stability of the process.

Automotive electronics

Electric vehicle (EV) : Used in the battery management system (BMS) to monitor the current changes of the battery pack during charging and discharging to ensure the safe operation of the vehicle.

Hybrid electric vehicles: The same applies to the current management of batteries and electric motors to ensure that the energy flow between the various components is coordinated.

Home appliances and smart homes

Energy-saving home appliances: such as air conditioners, refrigerators and other products have built-in current sensors, which can automatically adjust the working mode according to the actual power consumption to achieve the purpose of energy saving and emission reduction.

Smart home system: Combined with the Internet of Things technology, users can view the power consumption of various appliances in the home through a smartphone app and remotely control their on-off status.

Safety and protection

Overcurrent protection: Installed in front of the circuit breaker or fuse, when the current exceeding the preset value is detected, the power supply is immediately cut off to prevent accidents such as fire.

Leakage detection: Residual current devices (RCDs) in residential or commercial buildings to quickly identify and isolate leakage paths for personal safety.

Research and education

Experimental research: The use of current sensors in laboratory environments for circuit analysis, new material testing and other activities.

Teaching demonstration: Used in schools to show students basic electrical principles and examples of their applications.

3. How to choose the right current sensor

There are several key factors that need to be considered when selecting the right current sensor to ensure that the selected device can meet the needs of the specific application. Here are some guidelines and steps to help you select a current sensor for your specific needs:

① Determine the measuring range

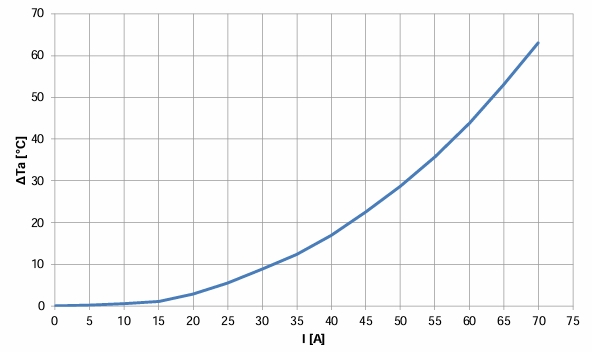

在选择合适的电流传感器时要先确定的限额电流

Maximum current: Determines the maximum expected current value in the circuit under test.

Minimum current: Know the minimum current value that needs to be detected, especially for low-power or precision applications.

Overload capacity: Confirm the maximum allowable current of the sensor to prevent damage caused by accidental overload.

② Signal type

Alternating current (AC) or direct current (DC) : Determine whether you need to measure alternating current or direct current, or both.

Frequency response: If high frequency signals are involved, pay attention to the frequency response characteristics of the sensor to ensure that it can accurately capture the current change in the desired frequency range.

③ Accuracy and resolution

Accuracy requirements: Determine the required measurement accuracy, including absolute error, relative error, etc.

Resolution: Consider the minimum amount of current change that the sensor can resolve, which is especially important for high-precision applications.

④ Output signal

Analog output: such as voltage or current signals, suitable for direct connection to analog input devices.

Digital output: Data is provided via serial communication interfaces (such as I2C, SPI, CAN, Modbus, etc.) suitable for integration into digital control systems.

Isolation: In high-voltage environments, electrical isolation can improve safety and reduce interference.

⑤ Physical dimensions and installation methods

Dimensions: Select the appropriate size sensor according to the actual installation space constraints.

Mounting method: Decide whether to use gripper, core, surface mount or another form of mounting method.

⑥ Working environment

Temperature range: Confirm that the sensor can work properly within the expected operating temperature range.

Protection level: Select products with appropriate waterproof and dustproof levels according to the use environment.

Anti-interference ability: In the environment with serious electromagnetic interference, choose a sensor with good shielding effect.

⑦ Cost effectiveness

Budget constraints: On the premise that the performance meets the needs, compare the prices of different brands and models to find the most cost-effective solution.

Long-term maintenance costs: Consider the cost of replacement parts and calibration services later.

⑧ Other special needs

Response time: For rapidly changing currents, the response speed of the sensor is an important factor.

Power requirements: Understand the power requirements of the sensor and whether it meets the power conditions of the existing system.

Certification and standards: Certain industries may have specific safety or quality standards required to ensure that the selected sensor meets these standards.

⑨ Branding and support

Manufacturer reputation: Choosing a well-known brand usually means better quality and after-sales service.

Technical support: View technical documentation, customer support, and repair services provided by suppliers.

4. Install the current sensor correctly

The correct installation of the current sensor is the key to ensure its accurate measurement and long-term reliable operation. Different types of current sensors (such as Hall effects, fluxgates, Roche coils, etc.) may have specific installation requirements, but here are some general installation steps and considerations:

Step 1: Determine the installation location

Determine the best mounting position for the sensor according to the application requirements. Ensure that the location has easy access to the measured conductor and sufficient space for installation. Try to stay away from strong magnetic fields, high temperature areas, or other devices that may cause electromagnetic interference.

Step 2: Prepare tools and materials

Prepare necessary tools, such as screwdrivers, wrenches, and insulation tapes. Check whether additional accessories are needed, such as mounting brackets, cables, and terminal blocks.

Step 3: Turn off the power

Before starting any electrical work, always turn off the relevant power supply and use a voltage detector to confirm that there is no residual voltage.

Step 4: Install the sensor

Non-contact sensor:

Rothschild coil: Wrap the Rothschild coil around the measured conductor, ensuring that the coil is completely closed and tightly fitted to the conductor. If you need to secure it, you can use a binding tape or a clamp.

Hall Effect/fluxgate: Depending on the specific design of the sensor, it is placed near or around the conductor under test. For some models, it may need to be secured through a dedicated mounting hole or bracket.

Contact sensors (e.g. shunt resistors) :

Connect the sensor in series to the circuit. Ensure that the connection point is firm and in good contact to prevent measurement errors or safety hazards caused by loosening.

Step 5: Connect the output signal

If it is an analog output (such as a voltage or current signal), connect it to the appropriate data acquisition system or meter. If it is a digital communication interface (such as I2C, SPI, CAN, Modbus, etc.), connect to the control system according to the wiring diagram provided by the manufacturer.

Step 6: Secure and protect

Secure the sensor and its cables using appropriate fastening devices (such as screws and clasps) to prevent damage caused by vibration or external forces. When necessary, apply additional protective measures to sensors and connection wires, such as using heat shrink tubes, electrical tape or metal sheathing.

Step 7: Repower and test

When all connections are complete, turn the power back on. Calibrate the sensor using a standard instrument or known load to verify its measurement accuracy. At the same time, check if there are any abnormal conditions, such as overheating, noise, etc.

Step 8: Record and maintain

Record the sensor model, serial number, installation date, and calibration data for future maintenance and troubleshooting. Develop a regular inspection plan, including cleaning, tightening of connection points and recalibration, to ensure the long-term stable operation of the sensor.

Following the above steps will help you install the current sensor correctly and ensure that it works properly. If you are not familiar with the electrical installation process, it is recommended to seek the help of a professional electrician, especially when dealing with high-voltage circuits. In addition, always follow local safety codes and manufacturer's guidelines.

5. Maintenance and troubleshooting

5.1 Common fault types and causes of current sensors

Understanding common fault types and their causes helps diagnose and solve problems in time to ensure normal system operation. Here are some common types of current sensor failures and their possible causes:

① Output signal is abnormal

电流传感器的常见故障类型及其原因

Cause:

Connection problems: Loose cables, poor contact, or damaged cables.

Power supply problem: The power supply voltage is unstable or incorrect.

Internal circuit failure: The internal electronic components of the sensor are damaged or aged.

External interference: Electromagnetic interference (EMI) or radio frequency interference (RFI) affects the output signal.

② precision decline

Cause:

Temperature change: The working environment temperature of the sensor exceeds its specified range, resulting in a decrease in measurement accuracy.

Long-term use: Sensor internal components aging or wear.

Overload: The sensor is overloaded for a long time, resulting in performance degradation.

Calibration failure: The sensor is not calibrated regularly, resulting in the accumulation of measurement errors.

③ No output signal

Cause:

Power failure: The sensor is not powered correctly.

Internal circuit break: The internal circuit of the sensor is broken or short circuit.

Wiring error: Incorrect or incorrect connection between the sensor and the control system.

Sensor damage: The sensor is physically damaged or the internal components fail completely.

④ Slow response time

Cause:

Sensor aging: The internal components of the sensor are aging and the response speed is slowed down.

Temperature impact: The working environment temperature is too high or too low, affecting the response speed of the sensor.

External interference: External electromagnetic fields or other interference sources affect the response time of the sensor.

⑤ Signal drift

Cause:

Temperature change: The sensor is sensitive to temperature, and temperature change may cause the output signal to drift.

Power supply fluctuation: The fluctuation of the power supply voltage will affect the output stability of the sensor.

Internal component aging: Sensor internal components aging, resulting in signal drift.

Mechanical vibration: There is mechanical vibration in the sensor installation position, which affects its stability.

⑥ Overheating

Cause:

Overload: The sensor is in overload state for a long time, resulting in heat.

Poor heat dissipation: The sensor installation position is poorly ventilated, resulting in poor heat dissipation.

Internal fault: The internal circuit of the sensor is faulty, resulting in increased power consumption.

⑦ Insulation resistance is reduced

Cause:

Humid environment: The sensor is exposed to moisture for a long time, which causes the insulation material to absorb moisture.

Pollution: The sensor surface or interior is covered by dust, oil and other pollutants.

Aging: The insulation materials of the sensor age, which degrades the insulation performance.

5.2 How to test the current sensor

Testing whether a current sensor is good or bad usually involves multiple steps, from visual inspection to electrical performance testing to functional verification under actual load conditions. First, perform an appearance check to ensure that there is no obvious physical damage to the sensor, such as cracks, deformation or corrosion, and confirm that all connection terminals are intact and not loose or oxidized. At the same time, check whether the logo on the sensor is clearly visible, and whether the model and range information meets the application requirements.

Next comes the electrical performance test. Use a megohm meter to measure the insulation resistance between the input and output of the sensor to ensure that it is greater than a few megohm (MΩ). The sensor is fed a series of current values of different sizes through a known standard current source, the output signal under each current value is recorded, and the percentage error is calculated to evaluate its accuracy. For AC current sensors, a signal generator can be used to generate sine wave currents of different frequencies, measure and record the output signal at different frequencies, and ensure that its response meets specifications over the entire operating frequency range.

In the functional verification stage, the sensor is installed in the actual circuit, through the actual load (such as motor, heating element, etc.) to generate current, observe and record the output signal of the sensor, and compare it with the known current value to confirm whether its performance is stable and reliable under different load conditions. If the sensor has overload protection, the effectiveness of its protection mechanism can be tested by applying a load that exceeds the rated current. In addition, the sensor can be run continuously under normal operating conditions for a period of time to test its long-term stability. The use of diagnostic tools such as data loggers and oscilloscopes can help record and analyze output signals. Finally, be sure to read the sensor's technical manual or user guide carefully, understand the specific model of the test method and recommended operating procedures, and pay attention to safety during the test process, ensure power off operation and seek professional help if necessary.

5.3 Suggestions for Routine Maintenance of the current sensor

Effective maintenance can extend the service life of current sensors and ensure that they are always in optimal working condition.

  • Check the appearance of the sensor regularly to ensure that there is no physical damage, corrosion, or loose parts. Check that all connection terminals are tight and not damaged, and ensure that cables and terminals are not loose or oxidized.

  • Wipe the exterior surface of the sensor with a clean, soft cloth to remove dust and dirt. For removable sensors, the housing can be opened to clean the internal dust and dirt. Be careful not to touch the sensitive element.

  • Make sure the sensor operates within the manufacturer's recommended temperature and humidity ranges. Avoid exposing the sensor to extreme environments. Minimize sources of electromagnetic interference around sensors, such as high-power devices or other electronic devices.

  • Ensure that the sensor has a stable power supply to avoid voltage fluctuations and overload. For critical applications, consider configuring an uninterruptible power supply (UPS) to prevent damage to the sensor from sudden power outages.

  • According to the manufacturer's recommendations, the sensor is calibrated regularly to ensure its measurement accuracy. Calibration is usually done at least once a year. Record data for each calibration to track changes in sensor performance.

  • Use a data logger or monitoring system to record the output signal of the sensor for long-term data analysis. Through data analysis, any anomalies such as signal drift, slow response time, etc. are detected and dealt with in a timely manner.

  • In wet or dusty environments, consider using a guard or sealed box to protect the sensor. In environments where there is a risk of vibration or shock, take appropriate shock absorption measures, such as installing shock pads or supports.

  • Once the sensor failure or performance degradation is found, it should be repaired in time. Prepare some common spare parts, such as connectors and cables, for quick replacement of damaged parts. For complex failures, it is recommended to contact professional maintenance personnel or the manufacturer's technical support team.

6. Conclusion

INFINITECH details the types of current sensors, how they work, the areas of application and the key points of selection and maintenance. Whether they are non-contact Hall effect sensors, fluxgate sensors or Roche coils, or contact shunt resistors, these current sensors play an important role in power systems and energy management, industrial automation, automotive electronics, home appliances and smart homes.

When selecting the right current sensor, it is necessary to consider the measurement range, signal type, accuracy and resolution, output signal characteristics, physical size and installation mode, operating environmental conditions, cost effectiveness, and other special requirements. Proper installation procedures and regular daily maintenance are important factors to ensure its long-term stable operation. To understand the common fault types of current sensors and their causes, and master the corresponding test methods, is very important for timely diagnosis and solution of problems. Nowadays, with the continuous progress of technology, current sensors are developing in the direction of higher accuracy, smaller size, stronger integration and intelligence, providing strong support for future smart grid, industrial automation and new energy applications.
