Rectangular connector introduction

2024-09-04 15:16:24 753

catalogue

Have you encountered selection or usage issues related to rectangular connectors? This is a common challenge when assembling electronic devices. Not understanding them can lead to unreliable connections and complicate system debugging. But rest assured, because this article will be there for you. We'll cover all the basic information you need to know about rectangular connectors in simple terms. With this guide, you will have a basic understanding of rectangular connectors and be able to deal with various problems that may arise.
So, let's get started.

1. Understand rectangular connectors

A rectangular connector is an electronic connection device with a rectangular shape design. This type of connector is commonly used for data and power transmission between components inside a computer, between peripherals and computers, and between other electronic devices. Rectangular connectors can come in a variety of sizes and pin arrangements, depending on the specific application needs they are intended to meet.
Because of its robustness, reliability and versatility, rectangular connectors are widely used in industrial automation, aerospace, telecommunications equipment, medical equipment, automotive industry, computers and peripheral equipment, test and measurement equipment and other fields.

2. Structure and type of rectangular connector

Here are some details about the structure and types of rectangular connectors:

Basic structure of rectangular connector

The basic structure of the rectangular connector mainly includes several key parts such as the shell, contacts, insulators, fixed devices, termination methods, shielding layer and identification. The housing, as the main part, not only provides mechanical support and protection of internal contacts, but also provides electromagnetic interference (EMI) shielding through metal materials. The contact is the core of the connector, consisting of male and female terminals, usually made of metal materials with good electrical conductivity and corrosion resistance, and enhanced by gold-plating and other ways. Insulators are made of non-conductive materials and are used to isolate contacts and prevent short circuits. Fixtures such as thread locking, clip locking, etc., ensure that the connectors are firmly held together when paired. The end connection method determines how to connect the wire to the contact, and common methods include crimping, welding, etc. For applications that require anti-interference, connectors may also contain shielding to reduce the effects of external electromagnetic fields. In addition, in order to prevent misinsertion, the connector is also equipped with color-coded or keyway identification.

Together, these basic structures ensure that rectangular connectors are able to achieve stable and reliable electrical connections in a variety of application environments. Whether in industrial automation, aerospace or medical devices, rectangular connectors provide the necessary data transmission and power supply while addressing a variety of environmental challenges through their rugged design. Through reasonable selection and use of these structural components, rectangular connectors can meet the specific requirements of different application scenarios and ensure the normal operation of the system.

What are the different types of rectangular connectors?

Choosing the right rectangular connector is essential to ensure the proper functioning of the system.

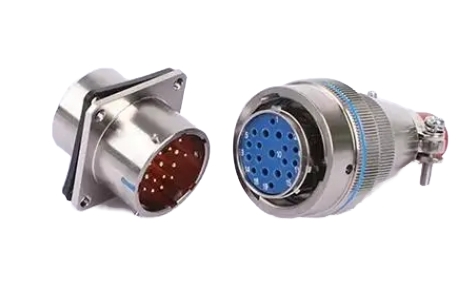

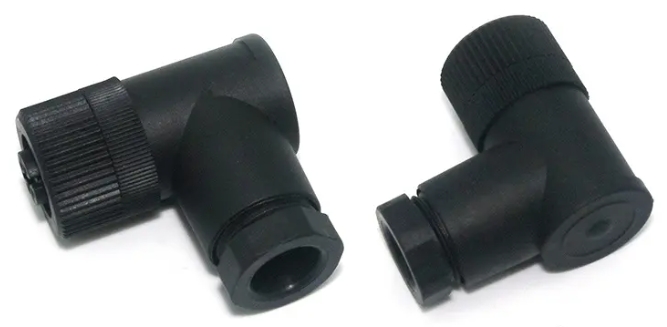

Circular electric connector

This type of connector is usually used in aviation, aerospace and other military equipment, because it can provide better sealing performance and stronger mechanical strength, suitable for use in harsh environments.

Rectangular electrical connector

This type of connector is more used in the printed circuit board of electronic equipment, such as the connection between the internal components of the computer, the connection between the peripheral and the computer.

In-line connector

This type of connector design is simple, only need to plug directly into the socket to complete the connection, easy to quickly assemble and disassemble.

Lock type connector

Additional locking mechanisms are required to ensure the strong connection of the connector, such as the use of screws, buckle locking, etc., for applications requiring higher reliability.

Non-sealed connector

This type of connector is suitable for indoor or other environmentally stable occasions, there is no special waterproof and dustproof design.

Sealed connector

It is waterproof and dust-proof, suitable for outdoor or harsh environment, and can protect internal electrical components from external environmental factors.

High and low voltage mixed connector

High and low voltage signals can be transmitted simultaneously within the same connector, suitable for applications requiring mixed signal transmission.

High and low frequency mixed connector

It can transmit high-frequency and low-frequency signals at the same time, which meets the needs of multiple signals coexistence, and is suitable for communication, medical equipment and other fields.

CA, CB, CD rectangular connectors

This is a traditional type of rectangular connector produced in the past mainly by enterprises affiliated to the Ministry of Electronics Industry.

CH type rectangular connector

This is a modern more commonly used rectangular connector, produced by the Ministry of Electronics Industry enterprises, widely used in modern electronic equipment.

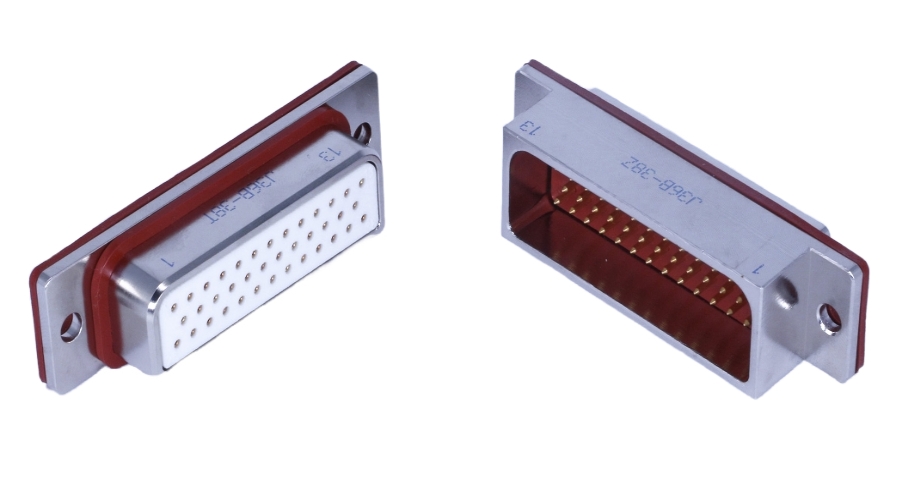

J-shaped rectangular connector

Mainly produced by enterprises belonging to the Ministry of Aviation and Space, this type of connector is suitable for the high standard needs of the aerospace field.

3. Technical parameters of rectangular connector

Understanding the main parameters of rectangular connectors can help engineers and technicians choose the most appropriate rectangular connector to meet the needs of a specific application.

What are the main technical parameters of the rectangular connector?

The following are some key technical parameters of the rectangular connector:

Number of pins: Indicates the number of electrical connection points that the connector can provide, the more pins, the more signal or power paths the connector can carry.

Contact type: including pin and socket. Different applications may require different types of contacts to match the interface on the cable or printed circuit board.

Contact size: Describe the actual physical size of the contact, which is important for selecting the right tool for terminating (such as a crimping tool).

Spacing: Refers to the distance between the centers of two adjacent pins, usually expressed in millimeters, such as 0.049 inches (about 1.25mm).

Current rating: The maximum current that a single contact can safely carry, this value is important to ensure that the connector does not overheat during prolonged operation.

Rated voltage: The maximum voltage that the connector can withstand, exceeding this voltage value may cause insulation failure.

Insulation resistance: Measures the ability of a connector insulator to stop current leakage, usually expressed in megohm (MΩ) units.

Withstand voltage: The maximum voltage that the connector can withstand without breakdown, usually expressed in volts (V).

Operating temperature range: The minimum and maximum temperature range at which the connector can operate properly, which is an important consideration for some applications, especially outdoor or industrial environments.

Number of insertions: The number of insertions the connector can withstand, reflecting the durability of the connector.

Protection level: refers to the protection level of the connector, especially for the evaluation of water and dust resistance. For example, IP67 indicates that the connector can prevent dust from entering under certain conditions and can be flooded for a short time.

Housing material: The material of the connector housing determines its physical strength, corrosion resistance and whether it has a shielding effect.

Contact surface treatment: contact surface treatment methods, such as gold plating, silver plating, etc., these treatments improve the electrical conductivity and corrosion resistance of the contact.

End connection method: How to connect wire or other conductor to the contact, common methods include crimping, welding, winding, etc.

4. Advantages and disadvantages of using rectangular connectors

Advantages of rectangular connectors

There are many benefits to using rectangular connectors that make them the first choice in many applications. Here are some of the main benefits of using rectangular connectors:

Easy to install and maintain: Rectangular connectors are usually simple in design, easy to install, and can be quickly connected and disconnected by in-line or locking, reducing maintenance costs and time.
High reliability: Strong structure to withstand vibration and shock, especially in industrial environments, the durability of rectangular connectors enables continuous operation under harsh conditions.
Versatility: It can transmit multiple signal types, including data, video, audio and power, for a variety of application scenarios, from simple signal transmission to complex multi-channel communication.
Customization options: Provide a variety of pin configurations, sizes and termination methods, can be selected according to the specific application needs, high flexibility.
Protection performance: Many rectangular connectors have waterproof and dust-proof functions, suitable for use in harsh environments, such as outdoor equipment, industrial sites, etc.
Standardization and interchangeability: In line with international standards (such as IEC standards), rectangular connectors of different brands and models often have good interchangeability, which is easy to replace and upgrade.
Space saving: The compact design is especially suitable for applications that need to save space, such as portable devices, embedded systems, etc.
Cost effectiveness: The production process is mature, the cost is relatively low, and the durability is good, reducing the frequency of replacement, and has a high cost performance in the long run.
Good electrical performance: usually has a good shielding effect, can reduce electromagnetic interference (EMI) and radio frequency interference (RFI), to ensure the quality of signal transmission.
Easy wiring and integration: The design of rectangular connectors makes them easy to integrate with other components, simplifying the wiring process inside the device.

Through these advantages, rectangular connectors have become an integral part of many electronic devices and systems, whether in industrial automation, computer networks, medical equipment or aerospace and other fields, rectangular connectors play an important role.

Disadvantages of rectangular connectors

Although rectangular connectors have many advantages, there are some limitations and potential problems in some cases.

Size limitations: Despite the compact design of rectangular connectors, even small rectangular connectors may appear too large to install in some extremely small Spaces.
Weight issues: Rectangular connectors can be relatively heavy compared to some miniature connectors, which can be a consideration in weight-sensitive applications such as aerospace.
Installation complexity: Although most rectangular connectors are easy to install, the installation process can be slightly more complicated for some connectors that require special fixtures, such as screw locking.
Cost issues: Specially designed rectangular connectors, such as those with high levels of protection or made of special materials, can be relatively costly.
Connection stability: In some applications, if the connector is frequently plugged and unplugged or in a continuous vibration environment, it may cause poor contact or wear, affecting the stability of the connection.
Environmental adaptability: Although many rectangular connectors have waterproof and dust-proof functions, not all rectangular connectors can adapt to extreme environmental conditions, such as high temperature, low temperature, high humidity, etc.
Interchangeability issues: Although rectangular connectors generally have good interchangeability, there may be subtle differences if products from different manufacturers are involved, resulting in poor interchangeability.
Electromagnetic interference (EMI) : Although many rectangular connectors have a shielding design, in some high-frequency transmission applications, if the shielding is not adequate, it may be affected by electromagnetic interference.
Customization costs: If a specially customized rectangular connector is required, such as a specific pin configuration or size, additional costs and delivery times may be added.
Maintenance and replacement difficulty: For some rectangular connectors installed in hard-to-reach locations, maintenance and replacement can become more difficult.

Understanding these potential limitations can help you make more appropriate choices when choosing connectors and take appropriate precautions to overcome these challenges.

5. Rectangular connector purchase guide

How to choose the right rectangular connector?

Choosing the right rectangular connector is a meticulous work that requires consideration of several aspects. Here are some key steps and considerations to help you choose the most suitable rectangular connector:

Clear application requirements: Determine which device or system the connector will be used in, and understand the specific use environment (such as indoor, outdoor, industrial sites, etc.). Analyze signal transmission requirements, including data transmission rate, power requirements, signal type (analog/digital), etc.
Determine the technical specifications:
- Pin Count and configuration: Select the appropriate number of pins based on the number of signals and power channels required by the device.
- Rated current and voltage: Ensure that the rated current and voltage of the connector meet system requirements.
- Electrical performance: Consider the insulation resistance, voltage resistance and other parameters of the connector.
- Protection level: If the device needs to be used in harsh environments, choose a connector with an appropriate protection level, such as an IP level.
Consider mechanical characteristics:
- Shell material: Select the appropriate shell material according to the application environment, such as metal or plastic.
- Connection mode: Select the connection mode suitable for the application, such as in-line, locking, etc.
- End mode: Select an appropriate end mode based on the cable type, such as crimping or welding.
Environmental adaptability:
- Temperature range: Ensure that the connector can work properly within the expected operating temperature range.
- Corrosion resistance: Connectors used in corrosive environments need to be resistant to corrosion.
- Shock-proof: For devices that need to be used in a vibrating environment, choose connectors with a shock-proof design.
Reliability and Durability:
- Number of insertions: Consider the service life of the connector, especially for applications that require frequent insertions.
- Contact material: Select contact material with good electrical conductivity and wear resistance, such as gold-plated contact.
Cost-benefit analysis:
- Under the premise of meeting the technical needs, compare the prices of different brands and models, and choose cost-effective products.
- Consider later maintenance costs and replacement costs, choose connectors that are easy to maintain and have a long service life.
Supplier and Service Support:
- Choose reputable and attentive suppliers to ensure timely technical support and after-sales service.
- Consider supplier lead times and inventory to ensure timely availability of the connectors you need.
Compliance and Certification:
- Verify that connectors comply with relevant industry standards and certification requirements, such as CE, UL, RoHS, etc.

By carefully considering all of the above aspects, you can be more targeted in choosing the rectangular connector that best suits your application needs.

6. Installation and use of rectangular connectors

How to properly install and use rectangular connectors?

Proper installation and use of rectangular connectors is key to ensuring their performance and longevity. Here are some basic guidelines to help you properly install and use rectangular connectors:

Preparation before installation

Read the manual: Before installing the connector, read the installation manual or manual carefully to understand the features, installation procedures, and precautions of the connector.

Inspect connectors: Check connectors for damage or defects such as bent pins, cracks, or any obvious damage before installation. If there is a problem, replace the connector with a new one.

Prepare tools: Prepare the required tools, such as screwdrivers, wrenches, crimping tools, and wire strippers, and ensure that they are in good condition.

Environment preparation: Ensure that the installation environment is clean and dust-free to avoid short circuit or poor contact caused by foreign matter entering the connector.

Installation procedure

Cable preparation: Properly peel off the outer skin of the cable according to the type of connector, and dispose of the internal wire of the cable according to the requirements of the connector manual.

End wire: Use the appropriate tool to end the wire to the connector contact. Common termination methods include crimping, welding, or screwing. Ensure that each contact is securely secured and in good contact.

Insert and lock: Insert the connector in the correct direction to avoid forced insertion. If the connector has a locking mechanism, follow the instructions to lock it and ensure that the connector is securely connected.

Checking connections: After installation is complete, check that the connectors are fully inserted in place and that the locking mechanism has been activated correctly. The connector can be gently pulled to confirm its firmness.

Test connection: Before powering on, perform a functional test of the connector to ensure that all signal and power paths are correctly connected and working properly.

Precautions for use

Avoid excessive stress: During the installation and use of the connector, avoid applying excessive force to the connector, especially avoid applying excessive tension on the cable, so as not to damage the connector or cable.

Regular inspection: Check the status of connectors regularly, especially those that are frequently plugged or work in harsh environments. If any signs of damage or performance degradation are found, they should be replaced promptly.

Proper storage: When connectors are not in use, they should be stored in a dry, clean place, and avoid exposure to extreme temperatures or humidity.

Compliance with operating specifications: In the process of using connectors, comply with all relevant operating specifications and safety guidelines to ensure the safety of operators.

By following the above steps and precautions, you can ensure the correct installation and use of rectangular connectors, thereby maximizing their service life and maintaining the stable operation of the system.

7. Maintenance and maintenance of rectangular connector

How to maintain rectangular connectors to extend service life?

Proper maintenance can significantly extend the service life of connectors and reduce downtime due to failure. Here are some ways to maintain rectangular connectors:

Regular cleaning: Use a clean soft cloth or special detergent to gently wipe the surface of the connector to remove dust and dirt. Be careful not to use cleaners that contain corrosive chemicals. For the contact, you can gently wipe with an alcohol cotton ball, but avoid excessive force to avoid damage to the contact.

Check contacts: Check contacts regularly for oxidation, corrosion, or wear. If any problem is found, clean or replace the contact in time.

Check the housing and locking device: Periodically check the housing of the connector for cracks, deformation, or corrosion. Check that the locking device is intact to ensure that the connector will not accidentally come loose during use.

Check cable connections: For rectangular connectors with cable connections, check the cable regularly for breakage or wear. Make sure that the connection between the cable and the connector is not loose or detached.

Storage conditions: Connectors not in use should be stored in a dry, well-ventilated environment to avoid exposure to humidity or extreme temperatures.

Avoid excessive stress: Avoid unnecessary mechanical stress on the connector during use, especially at the cable connection. Ensure that the cable has enough slack to avoid connector damage due to pulling.

If a fault occurs, what are the common troubleshooting methods?

Poor contact:

Symptom: The signal transmission is unstable, the power connection is interrupted.

Solution: Check that the contacts are clean and there is no oxidation or corrosion. Re-end or replace contacts if necessary.

Pin bent or broken:

Symptom: Connectors cannot be inserted or locked correctly.

Solution: Carefully correct slightly bent pins, severely bent or broken cases require replacement of the connector.

Case damage:

Symptom: The connector housing is cracked or deformed.

Solution: Replace the damaged housing to ensure the mechanical strength and protective properties of the connector.

The locking mechanism fails:

Symptom: Connectors cannot be securely locked together.

Solution: Check the locking device for damage or wear and repair or replace it.

Electrical performance degradation:

Problem performance: the insulation resistance is reduced, the voltage resistance is decreased.

Solution: Check the insulator of the connector for damage and clean or replace the damaged parts.

Failure caused by environmental factors:

Problems: Connectors used in humid or corrosive environments may rust or corrode.

Solution: Use appropriate protective measures, such as sealing rings or moisture-proof materials, or replace them with connectors suitable for the environmental conditions.

Through regular maintenance and correct troubleshooting methods, the service life of the rectangular connector can be effectively extended and its continuous and reliable operation in a variety of application environments can be ensured.

8. Common misunderstandings about rectangular connectors

All rectangular connectors are common?

In fact, rectangular connectors have different specifications and standards, which are designed according to specific application requirements. Different devices may require different types of connectors, and even if they look similar, they may not be compatible due to factors such as pin layout, size, rated current, etc.

Rectangular connectors for industrial equipment only?

Although rectangular connectors are common in industrial Settings, they are also widely used in other fields, such as consumer electronics, medical devices, aerospace, and more.

Rectangular connectors Less reliable than circular connectors?

Reliability depends on the specific design and application. Rectangular connectors can also achieve high reliability standards through design improvements, such as locking mechanisms, waterproof seals, etc.

Rectangular connector for data transfer only?

Rectangular connectors can be used not only for data transmission, but also for power supply. In fact, many rectangular connectors support both data and power transmission.

Rectangular connectors Not suitable for mobile devices?

While mobile devices make more use of miniaturized, lightweight connectors, certain rugged mobile devices, such as military or industrial tablets, may use specially designed small rectangular connectors.

Rectangular connectors are always larger?

With the advancement of technology, the design of rectangular connectors has also evolved, and there are now many miniaturized rectangular connectors that can adapt to compact space requirements.

Rectangular connectors not resistant to environmental impacts?

High quality rectangular connectors are specially treated to withstand harsh environmental conditions such as high temperature, low temperature, moisture, corrosive gases, and are suitable for use in a variety of environments.

9. Finally

Understanding rectangular connectors and their characteristics is essential for anyone involved in electrical engineering or electronics design. Despite the continuous iterations of connection technology on the market, rectangular connectors are still widely used due to their versatility and reliability, especially in situations where stable connections and high-density interfaces are required.

By mastering the structure, type and technical parameters of rectangular connectors, you can more precisely select the right products and install and maintain them correctly, whether in industrial automation, communication equipment or consumer electronics. This not only improves the overall performance of the system, but also ensures the reliable operation of the connector throughout the service cycle.
