How modular connectors are at the heart of modern, efficient data transmission and power management?
2024-06-28 14:51:09 1060
Modular design is a system design strategy in which a system is broken down into multiple independent, interchangeable parts called modules. Each module is responsible for performing a specific set of functions and for communicating with other modules in the system through predefined interfaces. This approach improves the flexibility and scalability of the system, and here is a detailed explanation of how modular design does this:
- Increased flexibility: Modularity allows each module to be developed, tested, and modified independently without affecting other parts of the system. This means that if you need to improve or fix a feature, you can only work on that particular module. Modules can be replaced by other modules that perform the same function but may have different characteristics. This allows the system to adapt to new technologies or more efficient components without having to redesign the entire system. Modules can be combined in different ways to create different product configurations or system layouts to meet different needs or market segments.
- Enhanced scalability: With modular design, new modules can be easily added without interfering with existing functionality, thus expanding system capabilities. Modules communicate with each other through standardized interfaces, which ensures that any module that complies with the interface specification can be seamlessly integrated into the system, regardless of its internal implementation.
- Design and maintenance enhancements: Modular design simplifies the design and development process by breaking down complex problems into smaller, more manageable pieces. Each module can be developed independently and then integrated into the overall system. When a problem occurs in one part of the system, the faulty module can be quickly located and repaired or replaced, rather than checking the entire system. This reduces maintenance time and costs. Modular design encourages the reuse of components, which means that proven modules can be reused in future projects, saving development time and resources. Due to the nature of the modular design, the system can be more easily updated to new technologies or standards, as only the relevant modules need to be upgraded or replaced, without the need to radically change the entire system architecture.
- Standardized components and interfaces: Standardized components and interfaces are at the heart of modular design. They ensure compatibility and interoperability between modules, regardless of who developed them. Standardization also facilitates module reuse, reduces development costs, and speeds time to market for new product or system releases.
How does modular design apply to Energy Storage converter (PCS) systems
In a modular design, PCS systems are divided into multiple independent modules, each responsible for performing specific functions such as energy conversion, control logic, communication, protection, and so on. This design ensures that the failure of a single module will not affect the entire system, thus reducing the risk of system failure. The modular design allows individual components in the PCS system to be quickly replaced through standardized interfaces. When a module fails, it can be quickly identified and isolated, and only the module can be maintained or replaced without dismantling the entire system. This not only reduces maintenance time, but also reduces downtime and improves system availability. Advances in technology mean that new, more efficient components are constantly emerging. With a modular design, PCS systems can easily replace existing modules with more advanced ones, enabling performance upgrades. For example, newer power electronics such as MOSFETs or IGBTs can be easily integrated into the system to improve efficiency or increase output power.
Modular design also reduces production costs because it allows manufacturers to mass-produce common modules rather than customizing components for each system. In addition, standardized modules can be used for many different system configurations, reducing inventory requirements while increasing supply chain flexibility. As the demand for energy storage grows, the modular design allows users to easily expand system capacity by adding additional modules without having to completely rebuild the system. This flexibility is especially important for adapting to changing energy demands.
The modular design allows PCS systems to be pre-assembled and tested in the factory and then installed on site as a complete unit. This not only reduces the amount of work on site, but also guarantees higher installation quality and faster start-up speed. Modular designs often include built-in self-monitoring and fault reporting capabilities to help detect potential problems early. Independent data transfer and condition monitoring between modules allow the system to more accurately locate the point of failure and sometimes even take preventive action before the problem becomes serious.
The role of high-speed serial communication technologies such as LVDS in modular connectors
The application of high-speed serial communication technologies, such as low-voltage differential signals (LVDS), in modular connectors is critical to achieving high-speed data transmission and reducing electromagnetic interference (EMI). LVDS technology is able to perform well in these areas, mainly due to the following key characteristics:
1. LVDS uses differential signal transmission mechanism, that is, data is sent simultaneously through a pair of lines (positive and negative lines), and the polarity of the signals on the two lines is opposite. The receiver recovers the original data by comparing the signal differences between the two lines. This mechanism significantly reduces the impact of common-mode noise, thereby reducing EMI generation, while improving signal integrity and anti-interference capability.
2. LVDS uses a lower voltage swing (typically about 350mV), which is much lower than traditional TTL or CMOS levels. This means that less power is consumed during signal transmission and less thermal effect is generated, thereby reducing radiation interference on the signal line. Low voltage swing also helps reduce signal reflection and crosstalk, further improving signal quality.
3. LVDS can support data transmission rates up to 1.5Gbps or even higher, which makes it very suitable for high-speed data transmission application scenarios, such as video, image processing, network communication and other fields. The high bandwidth feature allows large amounts of data to be transmitted in a short period of time while maintaining signal clarity and integrity.
4. LVDS is driven by a constant current source, which means that the drive circuit will provide a constant current regardless of how the load impedance changes. This characteristic helps maintain signal stability and consistency, maintaining good signal quality even over long distances or at high frequencies.
5. Although LVDS was originally designed for short-distance signal transmission, with the proper cable and connector design, it can support transmission distances up to tens of meters while maintaining high data rates. This makes LVDS ideal for connecting remote devices in modular systems, such as data exchange in server rooms, industrial automation control, etc.
Application in modular connectors
In modular designs, LVDS technology is often used in signal transmission lines within connectors to achieve reliable transmission of high-speed data. Modular connectors are designed with LVDS characteristics in mind, such as the matched impedance of the signal lines, the use of shielding layers, and the precise layout of differential pairs to minimize EMI and signal attenuation. In addition, modular connectors often include built-in grounding and shielding structures to further enhance EMI protection.
Application of anti-interference technology in modular connector
The application of anti-interference technology in modular connectors is an important part of ensuring signal integrity and system reliability. These technologies are particularly important in complex and interference-dense environments such as industrial automation, aerospace, military, and medical devices. Here are several key anti-interference design strategies that work together to prevent the negative impact of external noise on connector signal integrity:
1. Shielding and grounding
-
Shielded connector: A metal shell is used to wrap the connector to form a Faraday cage, which can effectively block interference from external electromagnetic fields.
-
Shielded cable: A shielded cable is used between the connector and the device. The shielded layer of the cable is in close contact with the shielded shell of the connector to form a continuous shielding path to reduce the intrusion of radiation interference.
-
Good grounding: Ensure that the shield layer of the connector has a reliable electrical connection to the ground plane of the system in order to direct the induced interference current to the ground and avoid voltage differences on the signal line.
2. Differential signal transmission
-
Differential pair: The use of differential signals (such as LVDS, RS-485, etc.) instead of single-ended signals, through the transmission of phase opposite signals on two signal lines, can effectively offset the common mode noise, improve the anti-interference ability of the signal.
3. Filtering and decoupling
-
Filter: LC filter or PI filter is added to the input/output of the connector, which can filter out high-frequency noise and protect the signal from rapidly changing electromagnetic interference.
-
Decoupling capacitor: The decoupling capacitor placed on the power line can absorb the power ripple and transient noise, and maintain the stability of the power supply voltage, thereby reducing the impact of the power noise on the signal.
4. Isolation technology
-
Photoelectric isolation: The use of optocouplers to electrically isolate the transmitting end of the signal from the receiving end can prevent interference from high voltage or high current circuits into the sensitive circuit.
-
Magnetic isolation: The use of transformers or magnetic couplers to achieve the isolated transmission of signals, especially for applications requiring high isolation voltage or in extreme environments.
5. Signal integrity design
-
Impedance matching: Ensure that the characteristic impedance of the internal and external cables of the connector matches to reduce signal reflection and distortion.
-
Layout optimization: Reasonably plan the route of signal cables to avoid parallel wiring and cross interference, while maintaining a proper distance between signal cables.
6. Digital signal processing
-
Error detection and correction: at the receiving end, CRC check, parity check and other methods are used to detect data transmission errors, and forward error correction (FEC) technology automatically corrects errors to improve the reliability of data transmission.
7. Material and process selection
-
High-quality materials: Select materials with high electrical conductivity, low loss and good mechanical stability for connector parts, such as gold and silver coatings, to reduce contact resistance and oxidation effects.
-
Precision manufacturing process: to ensure the manufacturing accuracy and assembly quality of connectors, to avoid signal leakage and interference caused by manufacturing defects.
How do modular connectors transmit power, data, and signals simultaneously
Modular connector designs enable simultaneous transmission of power, data, and signals through carefully designed contact layouts, signal isolation, and integrated electronics. Modular connectors contain several types of contacts, each with its own specific function: Power contacts These contacts are typically designed to carry a high current to provide a stable power supply. Data contacts are specifically designed for high-speed data transmission and may include differential pairs (such as LVDS) to reduce electromagnetic interference. Signal contacts are used to transmit control signals, sensor signals, or other low-speed communications.
In order to avoid different types of signals interfering with each other, a certain physical distance is maintained between power contacts, data contacts and signal contacts in the connector design to reduce electromagnetic coupling. A shielding layer is used to enclose both data and signal contacts to reduce interference from external electromagnetic fields while reducing crosstalk between different contacts. Some advanced modular connectors may integrate electronic components such as filters, isolators, or amplifiers to enhance signal quality and anti-interference capabilities. These components can be embedded directly into the connector or inserted into the connector as modular components.

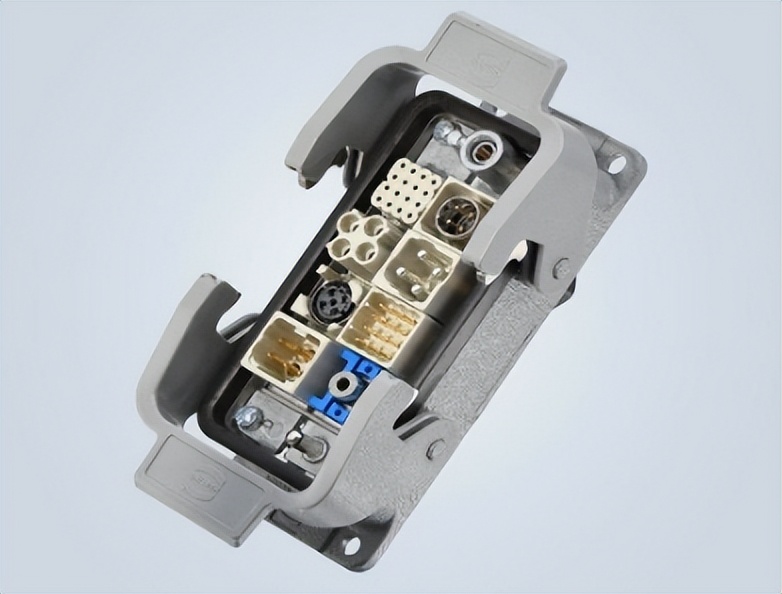

Modular connectors follow specific standards to ensure that products from different manufacturers can interoperate. Han-Modular® connector systems, for example, provide standardized interfaces that allow flexibility in combining power, data and signal modules. Some connectors feature field-deployable technology, which means users can connect wires directly on site without the need for additional tools or expertise, greatly simplifying the installation process and increasing flexibility. Some high-end modular connector systems may also include intelligent diagnostic functions, such as temperature monitoring, current monitoring, etc., to ensure the health of the system operation and early warning of possible problems. In order to ensure stable operation in a variety of environments, modular connectors are usually made of high-quality materials and manufacturing processes, such as metal housing, water and dust resistant design, and high temperature and corrosion resistant contact materials. Modular connectors allow users to select different combinations of modules according to specific application requirements, such as installing power modules, data modules and signal modules on the same connector, which greatly increases the versatility and adaptability of the connector.
