Circuit Protection: Ground Fault Circuit Breakers (GFCI) Knowledge Summary Guide

2024-06-06 16:05:19 1034

Ground fault circuit breaker (GFCI), as a key safety technology, can effectively prevent electric shock caused by leakage through its unique design.

Contents directory

> Earth Fault Circuit breaker (GFCI) definition and working principle

> GFCI is suitable for those occasions

> How to test whether the GFCI socket works properly and how to deal with the tripping situation

> GFCI circuit breaker wiring method and fault code meaning interpretation

> The difference between GFCI sockets and ordinary sockets

> GFCI control chip D4147 functions and applications

> Questions about what safety standards GFCI meets and common life factors

Ground fault Circuit breakers (GFCI) are electrical devices designed for safety and used in electrical outlets and circuit systems in residential, commercial and industrial environments. Its main function is to work by continuously monitoring the current difference between the live line and the neutral line in the circuit. Under normal circumstances, the current on these two lines should be equal, because the current flows out of the live line, passes through the load, and returns an equal amount through the neutral line.

If the GFCI detects a current imbalance between the two lines, it usually means that there is a current that is not returning through the intended path, but may instead flow through the body or the ground, in which case there is a risk of electric shock or circuit failure. To prevent electric shock accidents or electrical fires, the GFCI protects circuits and people by cutting off power quickly (usually within 25 milliseconds) after detecting such anomalies.

接地故障断路器(GFCI)

GFCI is commonly found in outlets in humid areas, such as kitchens, bathrooms, outdoors, and garages, where the risk of electric shock is higher when appliances are used. In addition to the standalone socket form, the GFCI can also be integrated into the circuit's circuit breaker panel to provide protection for the entire circuit. In North America, the use of GFCI is mandated by the National Electrical Code (NEC) and products are certified to safety standards such as UL943.

How does GFCI work?

GFCI's core function is to monitor current imbalances in the circuit. Under normal circumstances, the current flowing into the circuit should equal the current flowing out. Once there is a small difference, indicating that part of the current is not returned through the predetermined path, but may flow to the ground through the human body, then a ground fault occurs. The GFCI monitors this tiny current difference (usually less than 30 mA) in real time through a built-in sensitive circuit and, when an imbalance is detected, cuts off the power almost instantaneously (generally less than 25 milliseconds), thereby preventing an electric shock.

Inside the GFCI device are two key components - the current transformer (or induction coil). The two transformers surround the live line and the neutral line respectively. In normal operation, the current flowing through the live wire and the neutral wire should be equal and opposite, because the current flows from the live wire to the load and back through the neutral wire. When a leakage or ground fault occurs in the system, a part of the current will deviate from the expected path and no longer return completely through the neutral line, but may flow through the human body or directly to the earth. This results in a difference in current between the live line and the neutral line. Electronic components inside the GFCI, such as the chip RV4145, detect this tiny current difference and amplify it. Once the amplified signal reaches a preset threshold (usually 4-6 mah), the signal is further processed. The amplified signal triggers a control circuit that activates a thyristor (such as MCR100-6) or other switching element that causes the relay to operate. The release of the relay causes the circuit to break, thus cutting off the power supply and preventing the current from continuing to flow to the fault.

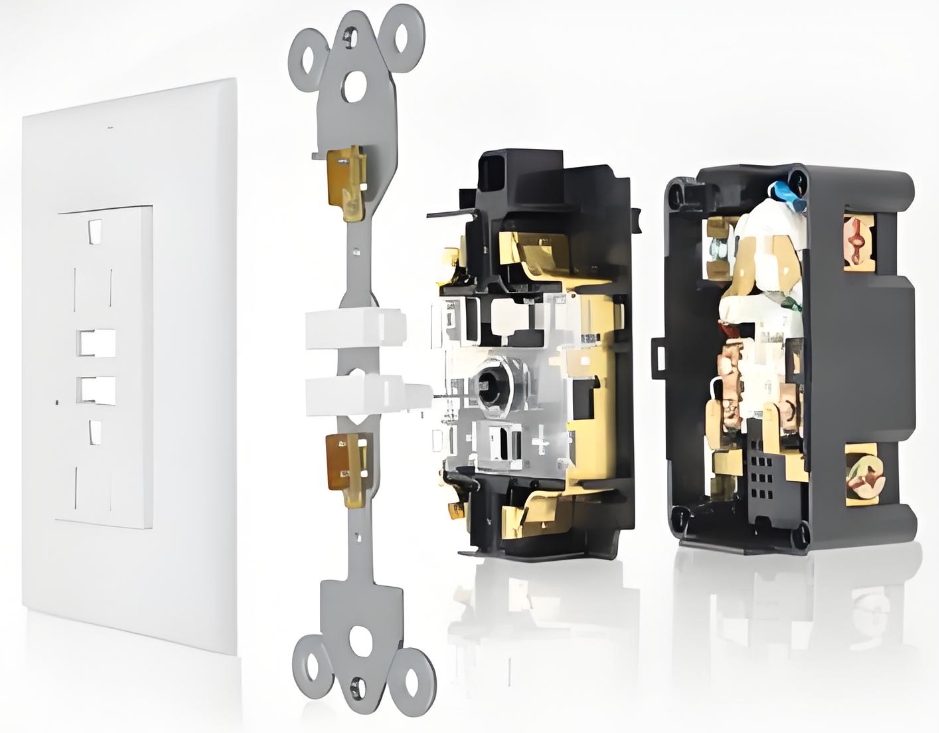

GFCI内部结构

In addition to detecting the current difference between the live line and the neutral line, the GFCI is equipped with a second coil to detect short circuits between the neutral line and the ground line, as well as to check the integrity of the line without load, ensuring protection even under atypical leakage conditions. GFCI is usually equipped with a "Test" button to periodically check whether the function of the device is normal, pressing this button will simulate the leakage situation, if everything is normal, GFCI should immediately cut off the power. After that, the user can reconnect the circuit through the "Reset" button.

Where is GFCI suitable for installation?

GFCI is particularly suitable for installation in areas prone to the risk of leakage and electric shock, and is suitable for installation in the following situations, mainly to improve the electrical safety of these areas and prevent the occurrence of electric shocks and electrical fires:

  1. Wet areas: such as bathrooms, kitchens (especially near water sources), laundry rooms, near swimming pools, outdoor shower areas, etc., where moisture is easily conductive, increasing the risk of electric shock.

  2. Outdoor outlets: Outdoor environments are susceptible to rain, moisture and weather changes, so outlets for outdoor use should be equipped with GFCI protection.

  3. Garages and basements: These areas can be humid and people use appliances more often in such environments, and installing GFCI can increase safety.

  4. Workshops and workshops: In work areas where power tools and equipment are used, GFCI can prevent injuries caused by leakage of electricity from tools.

  5. Gardens and terraces: Electrical outlets for outdoor lighting, fountains, power tools, etc., should be GFCI protected.

  6. Houseboats and marinas: The GFCI is particularly needed in aquatic environments to prevent electric shock accidents caused by water conductivity.

  7. Hospitals and nursing homes: In these places where safety is extremely high, GFCI can provide additional protection for patients and staff.

  8. Schools and kindergartens: To keep children safe, outlets in educational institutions should be equipped with GFCI, especially in places such as laboratories, art classrooms and restrooms.

In accordance with building codes and safety standards, many countries and regions require mandatory installation of GFCI in these high-risk areas. In addition, for new construction and renovation projects, electricians will often recommend or even mandate the installation of a GFCI in a specific location to comply with local electrical safety regulations.

How do I test if the GFCI socket is working properly?

It is important to check the function of GFCI sockets regularly. To test whether the GFCI (Ground Fault Circuit Breaker) socket is working properly, you can follow these steps:

测试GFCI(接地故障断路器)插座是否正常工作

  1. Appearance check: First confirm that there are two buttons "TEST" and "RESET" on the GFCI socket, and check whether there is an indicator. The indicator light on some GFCI sockets will light up during normal operation.

  2. Use a tester: The most accurate way is to use a professional GFCI tester, such as the EXTECH ET10 or another similar product. Plug the tester into the GFCI socket completely, and judge the GFCI working status according to the indicator light or display of the tester. A good tester can detect the correct wiring of the socket, open circuit, ground fault and other situations.

  3. Manual test:

    • Without using any appliances, first press the "RESET" button on the GFCI socket to ensure that the socket is in working condition (if there is an indicator light, it should light up at this time).

    • Next, press the TEST button. At this point, the GFCI should immediately disconnect the circuit, the socket should stop supplying power, and the indicator (if any) should change state or go out to indicate that it has responded correctly to the test.

    • Press the "RESET" button again, restore the circuit power supply, and the indicator returns to normal state, indicating that the GFCI has been successfully reset.

  4. Actual appliance testing: While not as accurate as a professional tester or manual TEST, you can roughly tell if the GFCI is working by plugging in a small appliance (such as a nightlight or phone charger), turning it on, and then pressing the "Test" button to see if the appliance immediately turns off.

What if the GFCI Circuit breaker keeps tripping?

Frequent trips can be caused by a variety of reasons, including, but not limited to, line aging, equipment leakage, overload, or failure of the GFCI itself. The solution should be simple to complex: First, remove all appliances connected to the loop and try to reset the GFCI; If the problem persists, use the insulation resistance tester to check the line insulation; Check whether there is leakage of equipment, one by one access electrical equipment to observe whether it causes tripping; Finally, if all external factors are excluded, consider replacing the GFCI circuit breaker. Throughout the process, follow safe operating procedures and seek the help of a professional electrician if necessary.

GFCI Circuit breaker wiring method?

Correct wiring is the basis to ensure the safe operation of GFCI circuit breakers. The wiring method for GFCI (Ground fault Circuit Breaker) usually involves several key steps, but please note that the exact wiring details may vary depending on the GFCI model and manufacturer. A general wiring guide is provided below, but be sure to refer to the specific GFCI user manual in your hand or have it operated by a professional electrician before actual operation to ensure safety and compliance:

  1. Power off: Before starting any wiring work, be sure to disconnect the power to the circuit from the main power supply to avoid the risk of shock.

  2. Understanding terminal identification: GFCI circuit breakers usually have the following terminals:

    • LINE (Incoming line) : Connects the line from the power supply (live line) and the neutral line (neutral line).

    • LOAD: The line, if any, used to continue transmitting GFCI protection to the downstream circuit.

    • GROUND: Connects the ground cable.

  3. Wiring steps:

    • Connect the LINE terminal: Connect the live wire (usually black or red wire) from the power supply to the "Hot" or L marked terminal on the GFCI's LINE terminal. Connect the neutral wire (usually white) to the LINE terminal marked with N. The GROUND wire (usually green or bare copper) is connected to the GND or ground terminal.

    • Connect the LOAD terminal (if necessary) : If you need GFCI to protect a downstream outlet or circuit, connect the live wire of the circuit to be protected to L1 of the LOAD, and the neutral wire to the corresponding N terminal. This makes the GFCI the primary protection point for the upstream circuit while providing protection downstream.

    • Test the wiring: After the wiring is complete, carefully check all the connections to ensure that they are correct, and then restore the power supply.

  4. TEST and reset: After initial wiring or repair, use the "Test" button on the GFCI to test whether it trips correctly. After that, press the "RESET" button to reset and confirm that GFCI can work normally.

Keep in mind that electrical work should strictly comply with local electrical codes and safety standards, and non-professionals should operate under professional guidance. Incorrect wiring may not only cause the GFCI function to fail, but may also pose an electrical fire or shock hazard.

GFCI Fault code meaning

The GFCI (Ground Fault Circuit Breaker) may indicate the problem in different ways in the event of a fault, for example, some advanced models of the GFCI may display a fault code. However, traditional GFCI sockets or circuit breakers usually do not have a digital fault code display, but instead indicate the problem through behavior (such as continuous tripping, inability to reset). However, if your GFCI device is equipped with a digital display or more advanced diagnostic capabilities, it may display specific fault codes.

Since the specific fault codes and their meaning depend on the manufacturer and model of the device, I cannot provide a generic list of fault codes. If you come across a GFCI device with a numeric or alphabetic fault code, it is best practice to consult the device's user manual or the fault code table provided by the manufacturer. These documents usually explain in detail the type of failure each code represents, such as:

  • E1: May indicate a general fault or an internal circuit problem.

  • E2: May be related to overload or short circuit.

  • E3: Possible ground fault detection.

  • E4: In some devices this may mean a self-test failure.

In order to accurately interpret your GFCI's fault code and take appropriate action, it is recommended to contact the manufacturer's customer support directly or visit their official website for technical support information. If it is for residential use, you can also consider hiring a professional electrician to help diagnose and resolve the problem. Safety is always the primary consideration when dealing with any electrical failure.

What is the difference between GFCI socket and ordinary socket?

The main difference between GFCI sockets and regular sockets is the safety features they provide and how they work:

GFCI插座与普通插座的区别

  1. Safety features:

    • GFCI socket: Designed with a special safety mechanism that can monitor if there is a small current leakage to the ground in the circuit. Once a current imbalance is detected (that is, the current is not fully returning to the neutral line along the intended path, but is partially flowing to the ground), the GFCI cuts off the power within a very short period of time (usually 1/40 of a second), preventing shocks and electrical fires.

    • Ordinary socket: does not have such leakage protection function, only provides basic power supply. If leakage occurs, the current will not be automatically cut off, which may cause security risks.

  2. Application:

    • GFCI sockets are commonly used in areas with a high risk of damp or electric shock, such as kitchens, bathrooms, outdoors and garages, and are installed in specific locations to enhance safety in accordance with building codes.

    • Ordinary sockets are widely used in dry areas in home and office environments, where security requirements are relatively low.

  3. Structure and reset:

    • There are "Test" and "Reset" buttons on the GFCI socket, which are used to periodically check whether the GFCI is working properly and to reconnect the power after a power failure.

    • Normal sockets do not have such a testing and reset mechanism.

  4. Series control:

    • GFCI sockets can control other sockets in series, and when one GFCI detects a leak and cuts power, all sockets connected to it will also lose power until the problem is resolved and the "reset" button is pressed.

  5. Installation regulations:

    • In the United States, certain areas and types of outlets must be GFCI types, such as outlets in the kitchen other than refrigerators, ovens, and dishwashers. These special appliances (such as ovens) may require 240 volts of power or due to the characteristics of use, are not suitable for connection to the GFCI socket, so as not to cause unnecessary power outages.

Function and application of D4147 GFCI control chip?

The D4147 is a low power ground Fault Circuit breaker (GFI) control chip designed to enhance the safety of electrical systems by detecting and protecting against potentially fatal ground fault current paths and neutral line short circuits to loads. The following is an overview of the main features and applications of the D4147:

Functional features:

  1. Integrated components: The D4147 integrates a variety of critical circuits, including diode rectifiers, high-precision 12V bandgap shunt regulators, precision low-VOS offset sensing amplifiers, time-delay noise filters, window detection comparators and thyristor drivers. These integrations reduce external component requirements and simplify the design and manufacturing process.

  2. Fault detection: The chip can quickly detect the fault of the live line to the ground and the short circuit of the neutral line to the load, effectively prevent the risk of electric shock and electrical fire, and ensure the safety of users.

  3. Low power consumption: With a static current of 400μA, it helps save energy and ADAPTS to the needs of various low-power applications.

  4. Sensitivity adjustment: Support leakage sensitivity adjustment to adapt to the safety standards and requirements of different application scenarios.

  5. Automatic reset: The automatic reset mechanism of the negative half-cycle SCR improves system reliability and reduces maintenance costs.

  6. Direct coupling: Supports direct DC coupling to the induction coil, simplifying circuit design.

Application field:

  • Three-wire GFCI output interface: Suitable for three-wire electrical systems that need to detect and prevent ground faults.

  • GFCI Chip Circuit breakers: Used to manufacture circuit breakers with integrated GFCI functions for domestic, commercial and industrial environments.

  • Portable GFCI line: Suitable for the protection of portable devices such as outdoor tools and temporary power distribution boards.

  • Home appliances: can be integrated into household appliances that need leakage protection, such as washing machines, dryers, etc.

  • Building electrical installation: meets the requirements of UL943B standard and is suitable for electrical safety upgrades in new construction and renovation projects.

What safety standards does GFCI meet?

In the United States, GFCIs must comply with the UL943 standard, which is a safety requirement for residential leakage protection devices. In addition, there are other international and regional standards, such as IEC 61008/61009, that ensure product compliance, reliability and safety. At the time of purchase, confirming that the product has the appropriate certification mark, such as UL certification, is the key to ensuring GFCI quality.

GFCI maintenance and longevity issues?

Although GFCI is designed for long-term use, its lifetime is affected by the environment, frequency and maintenance. In general, the life expectancy of a GFCI socket or circuit breaker is about 10 years. To ensure long-term performance, it is recommended to test every 3-6 months and keep the socket dry and clean. If the GFCI is found to trip frequently, test failure, or exceed the recommended service life, replacement should be considered. Timely maintenance and timely replacement are an indispensable part of ensuring the safety of household electricity.
